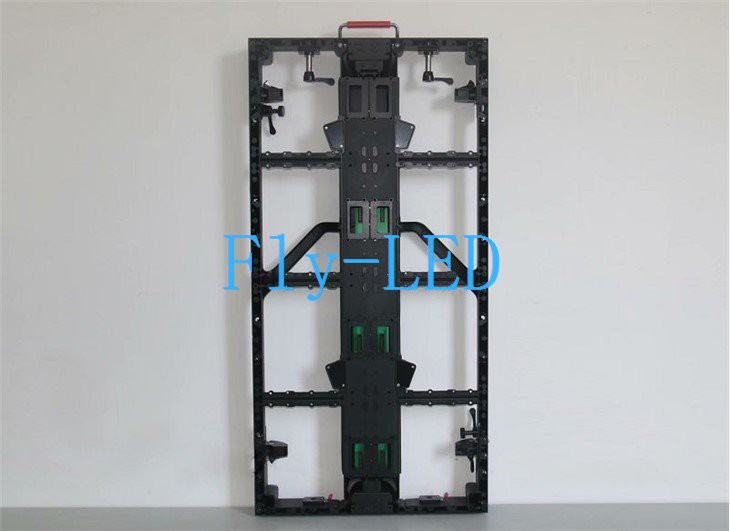

Rental LED Display 500x1000mm series details (4)(001)

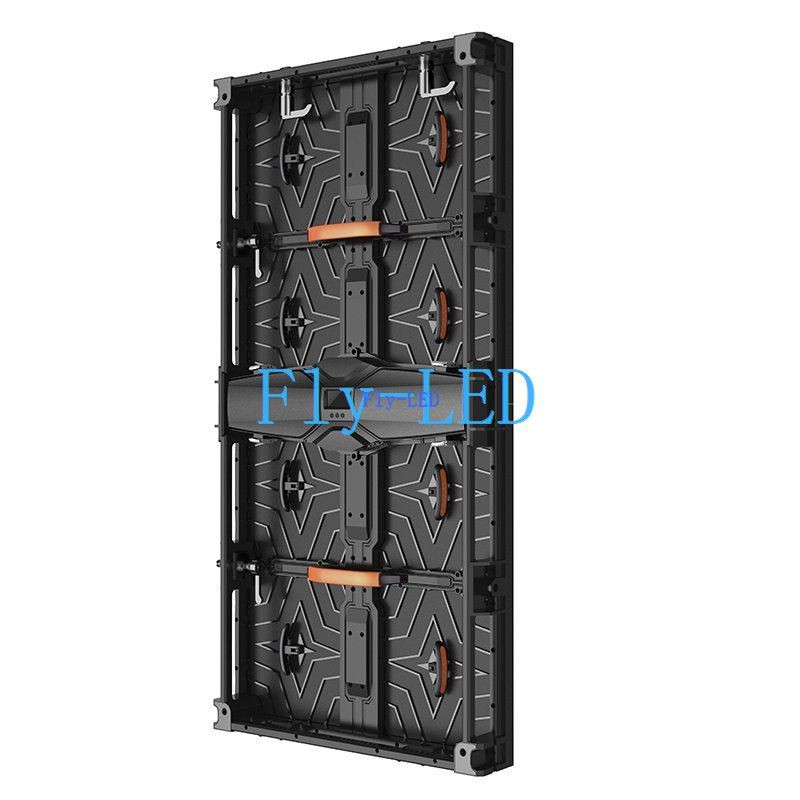

Audio Visual Solutions Rental LED Screen
Pixel Pitch: 3.91mm
LED Type: SMD1921
P2.98 P3.9 P4.8 P5.95 P6.25 Rental LED Screen
Specification
Basic Info. | ||
Model No. | 3.91 | 4.81 |
Pixel Pitch | 3.91mm | 4.81mm |
LED Type | SMD1921 | SMD2525 |
LED Brand | King light/ | King light / |
LED Color | 1R 1G 1B | 1R 1G 1B |
Pixel Density | 65,536 pixels/sqm | 43,222 pixels/sqm |
Module Info. | ||
Module Size | 250 x 250mm | 250 x 250mm |
Module Resolution | 64 x 64 pixels | 52 x 52 pixels |
Scan Mode | 1/16 Scan | 1/13 Scan |
Driving Mode | Constant Current Driving | |
Cabinet Info. | ||
Cabinet Size | 500 x 500mm | 500 x 500mm |
Cabinet Material | Die-casting Magnesium cabinet | |
Cabinet Type | lifting cabinet, easy assembling & dismantling | |
Weight | 6 KGS/cabinet | 6 KGS/cabinet |
Protection Grade | Front IP65 | Front IP65 |
Using Site | Outdoor used for events, such as weddings, celebration, match, festival activity, concert, etc. | |
Tech. Parameters | ||
Brightness | 4500 cd/sqm (nit) | 4000 cd/sqm (nit) |
Grey Scale | 65536 level | 65536 level |
Displaying Color | 281 trillion colors | 281 trillion colors |
Frame Rate | 60 HZ | 60 HZ |
Refresh Rate | 3840 HZ | 3840 HZ |
Contrast Ratio | 1000 : 1 | 1000 : 1 |
Viewing Angle | Horizon: 110º | Horizon: 110º |
Viewing Distance | 3mts to 300mts | 3mts to 300mts |
Power Input | AC110V 60HZ | AC110V 60HZ |
Power Consum. | Max. 900 W/sqm | Max. 900 W/sqm |
Working Temp. | -30 to 60 Celsius | -30 to 60 Celsius |
Working Humidity | 10% to 90% | 10% to 90% |
Storage Temp. | -40 to 70 Celsius | -40 to 70 Celsius |
Storage Humidity | 10% to 90% | 10% to 90% |
Screen Controlling | Linsn / Nova | Linsn / Nova |
Signal Input | AV, S-Video, YC, YUV, VGA, DVI, HDMI, SDI, DP (use Video Processor) | |
MTBF | > 5000 Hours | > 5000 Hours |
LED Life Span | 100,000 Hours | 100,000 Hours |
Warranty | 2 years | 2 years |
Certifications | CE, RoHS, FCC,ROHS | CE, RoHS, FCC,ROHS |
