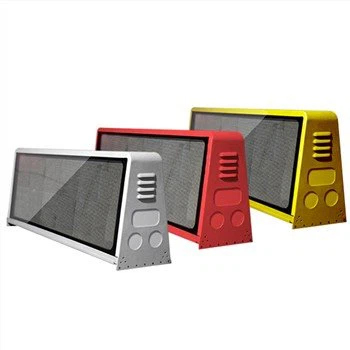

Mobile LED Display Trailer
2.High pixel density, high definition, good uniformity.
3.Good waterproof IP65, apply for extreme weather. (rain and snow , sunny, cloudy..)
Outdoor fixed Rental LED Screen 640x640mm size
1.SMD3535 led lamp with wide view angle and high brightness.
2.High pixel density, high definition, good uniformity.
3.Good waterproof IP65, apply for extreme weather. (rain and snow , sunny, cloudy..)
4.Could fixed on the wall, on the street, also be rental moving project.
5.Widely application for commercial led display, stage led screen, rental led screen, mobile led jumbotron, video wall screen.
P10 LED display technology parameters
Item | Technical parameter | |
Panel | Dimension | (w) 320mm*160mmH) |
Pixel pitch | 10mm | |
Pixel Density | 10000 DOTS/M2 | |
Pixel configuration | 1R1G1B | |
LED specification | SMD 3535 | |
Port type | HUB75-A | |
Pixel resolution | 32*16 dots | |
Average power | 20W | |
Panel weight | 0.37KG | |
Cabinet | Quantity of panel | 8PCS |
Weight for bracket | 2KG | |
Thermal discharge | fan 2pcs | |
Best viewing distance | 110/110 | |
Best viewing angle | 11-30 Meter | |
Working temperature | -20-±65 | |
Panel power supply | 5V40A | |
Screen power supply | AC220V-AC250V | |
Max power | 700W/M2 | |
Average power | 350W/M2 | |
Technical parameter | Driving device | Constant current drive |
Drive type | 1/2 Scanning | |
Refresh frequency | >300HZ | |
Display color | 4096*4096*4096 | |
Brightness | 6000-6500 mcd/M2 | |
Life span | 100000 Hours | |
Control distance | <100 Meter | |
