4K Front Service Indoor LED Video Wall Screen
High Definition and High Gray Scale LED Display
Seamless Connection
Front maintenance
Golder Ratio 16:9 Design 2k/4jk/8k Resolution LED Display
Product Description:
1.Seamless Splicing, Super Wide Viewing Angle, Highly Accurate Brightness & Color Consistency
2.It delivers an image which is super subtle and without getting tired after a longtime watching
3.Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear
4.Front Serviceable Module allows easy Maintenance, Saving Time & Space
5.16 Bit Grey Grade Processing, the color transition will be more natural.
Techinical Specification:
| Item | Techinical Specifications | |||
| Pixel Pitch | 1.25mm | 1.56mm | 1.667mm | 1.923mm |
| LED Configuration | SMD 3-in-1(SMD1010) | SMD 3-in-1(SMD1010) | SMD 3-in-1(SMD1010) | SMD 3-in-1(SMD1515) |
| Pixel Density | 640000pixels/sq.m | 409600 pixels/sq.m | 360000 pixels/sq.m | 270400 pixels/sq.m |
| Module Size | 200mm*150mm | 200mm*150mm | 200mm*150mm | 200mm*150mm |
| Module Resilution | 160pixel*120pixel | 128pixel*96pixel | 120pixel*90pixel | 104pixel*78pixel |

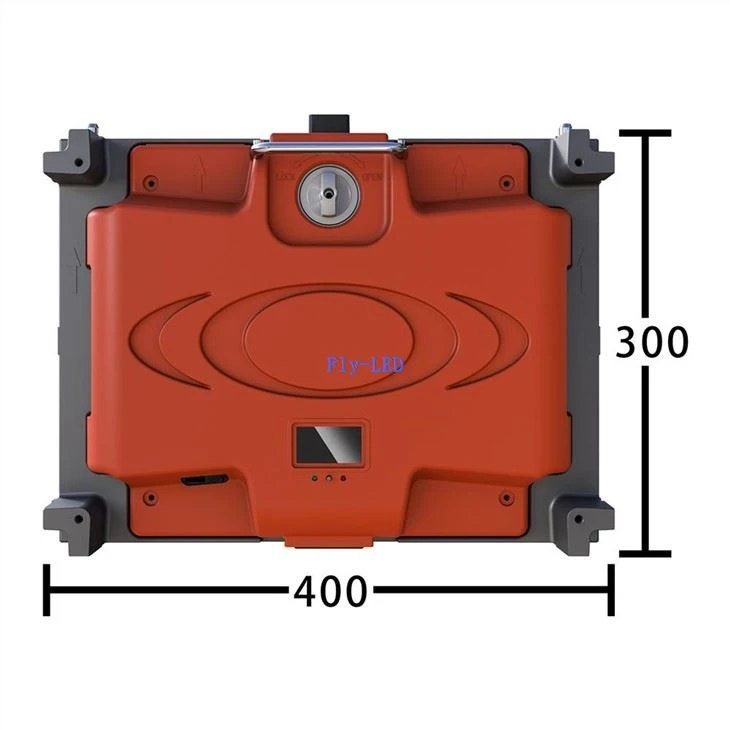

| Cabinet Size | 400mm*300mm | |||
| Cabinet Resolution | 320pixels*240pixels | 256pixels*192pixels | 240pixels*180pixels | 208pixels*156pixels |
| Cabinet Material | Die-casting Aluminum | |||
| Cabinet weight | 4.8kg | |||
| Brightness | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm |
| Colour temperature | 3500K-9500K | 3500K-9500K | 3500K-9500K | 3500K-9500K |
| Viewing Angle | H:160°/V:160° | |||
| Ave. Power consumption | 250 W/sqm | 250 W/sqm | 250 W/sqm | 250 W/sqm |
| Max. Power consumption | 800W/sqm | 800W/sqm | 800W/sqm | 800W/sqm |
| Drive Mode | 1/30 scan | 1/32 scan | 1/30 scan | 1/26 scan |
| Best Viewing Distance | ≥1.25m | ≥1.56m | ≥1.667m | ≥1.923m |
| Input Voltage | AC220V/50HZ or AC110V/60HZ (±10%) | |||
| Output Voltage | 5V,40A | |||
| Refresh rate | ≥3840Hz | |||
| Frame rate | 50/60 Hz/sec | |||
| Protection Level | IP43 | |||
| Life-span | 100,000 hours | |||
| Malfunction dot rate | < 0.0001 | |||
| Storage Temp/Humidity | -40~+60℃/10~80%RH | |||
| Operating Temp/Humidity | -25~+50℃/10~90%RH | |||
| Input Signal | RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc | |||
| PC Operating System | Microsoft Windows 7, 8, 98, 2000, XP and Vista |
